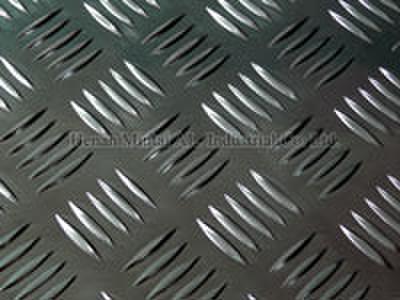

1000 series 5-bar Aluminum Tread Plate Alloy:1050/1060/1100/1200 Temper:HO,H14,H16,H18,H22,H24,H26
1000 series 5-bar Aluminum Tread Plate Quick Details
Including:1050 aluminium tread plate,1060 aluminium checker plate,1100 aluminium chequered plate,1200 aluminium durbar plate
Alloy :1050,1060,1100,1200
Temper:O, H12, H14, H16, H18,H24,H26
Thickness:1.5-6.0mm
Width：1000-2000mm
Length:up to 11000mm
High of bar:0.8-1.2mm
MOQ:5tons per size
Surface:matte,mirror
Regular size(mm):1219*2438,1220*2440,1200*2400,1200*3600,
1250*2500,1500*3000,1500*3600,1524*3048
1000 series 5-bar Aluminum Tread Plate Product tolerance requirement
Including:1050 aluminium tread plate,1060 aluminium checker plate,1100 aluminium chequered plate,1200 aluminium durbar plate
Total weight: +/-10%
Thickness:+/-1% for sheet(1-6mm),
Width:+2/-0mm for sheet,
Length:+3/-0mm for sheet
according to your requirement
| ALLOY/TEMP | SIZE(IN) | SIZE(FT) | SIZE(MM) |
|
1100 H14 |
.063×48×96 | .00525×4×8 | 1.6×1219×2438 |
| .063×48×120 | .00525×4×10 | 1.6×1219×3048 | |
| .125×48×96 | .01042×4×8 | 3.175×1219×2438 | |
| .125×48×144 | .01042×4×12 | 3.175×1219×3658 | |
| .250×48×120 | .02083×4×10 | 6.35×1219×3048 | |
| .250×48×96 | .02083×4×8 |
6.35×1219×2438 |
1000 series 5-bar Aluminum Tread Plate Packaging & Delivery
Package:export standard package,wooden pallet with fumigationDelivery time:about 30days after receiving the deposit
Payment:TT
Trading terms:FOB,CIF,CFR
Aluminum checkered plate standard:GB/T3880-2006
We can supply the Form E, Form A,CO and so on
Chemical composition of 1000 5-bars aluminum tread plate
Including:1050 aluminium tread plate,1060 aluminium checker plate,
1100 aluminium chequered plate,1200 aluminium durbar plate
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.07 | 0.05 | min99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | min99.6. |
| 1100 | 0.95Fe+Si | 0.02-0.2 | 0.05 | - | - | 0.10 | - |
min99.0 |
|
1000 series 5-bar Aluminum Tread Plate Applications
1.The embossed aluminium sheet is commonly used in producing chemical equipment and railroad tank cars.
2.Aluminium tread plate is also for non-slip floor in automobiles, airplanes, light rails, vehicle steps,
stair treads, elevators, garages, workshops and more.
3.Aluminium tread plate can also be used for wall panels, counter tops and tiling for other surfaces, and various
architectural uses. Since it is easy to machine as well as being robust and attractive, diamond plate tool
boxes are another popular application.
4.Aluminium treadplate is suitable for the majority of applications. Its diamond texture gives excellent
anti-skid properties, and it is often used in industrial settings for stairways, catwalks, ramps and walkways
where wet conditions may otherwise pose a risk of sliding or falling. These non-slip properties also make
it a common solution for ambulance floors and for the footplates of firetrucks, as well as domestic truck
beds and trailer floors
5.Aluminum tread plate has a wide range of applications in chemical equipment and sheet metal work,
as well as cooking utensils and pressure vessels, garage doors, awning slats, storage and gasoline tanks
and a variety of drawn and spun components. In sheet form, a relatively low thickness nevertheless provides
a high degree of rigidity, whilst remaining formable under the right circumstances.
The classification of the aluminum tread plate by bar:Five bar aluminum tread plate,
Three bar aluminum tread plate,aluminum diamond plate,orange-peel aluminum tread plate.
The classification of the aluminum tread plate by surface :bright aluminum tread plate,
mirror aluminum tread plate.matte aluminum tread plate
The classification of the aluminum tread plate by feature :corridor aluminum tread plate,
anti-skid aluminum tread plate,rust-proof aluminum tread plate
