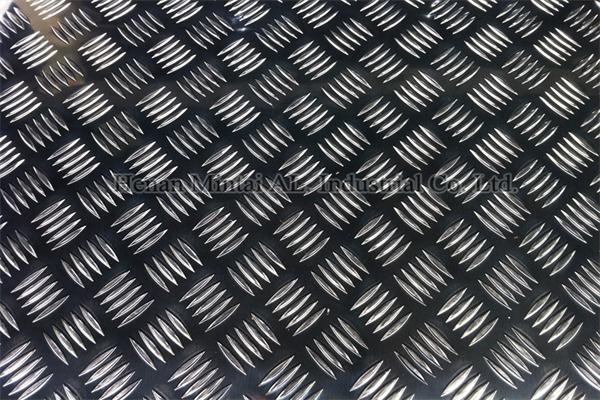

5000 series 5-bar Aluminum Tread Plate Alloy:5005/5052/5083/5754/5086/5182/5A02 Temper:O,H114,H22
5000 series 5-bar Aluminum Tread Plate Quick Details
Including:5005 5-bar aluminium tread plate,5052 5-bar aluminium checker plate,
5083 5-bar aluminium tread plate,5754 5-bar aluminium chequered plate,
5182 5-bar aluminium durbar plate,5086 5-bar aluminium tread plate,
5A02 5-bar aluminium tread plate
Alloy:5005,5052,5083,5754,5182,5086,5A02,5A03,5A06
Temper:H114,H22,O
Thickness:1.0-6.0mm
Width:800-2000mmLength:up to 11000mm
Ridge height:0.8-1.2mm
MOQ:5tons per size
Weight:about 2.5 tons per pallet
Standard product:EN-1386,ASTM,GBT,JIS
Protection:Paper interlayer
Regular size(mm):1219*2438,1220*2440,1200*2400,1200*3600,1250*2500,1500*3000,1500*3600,1524*3048
ALLOY/TEMP | SIZE(IN) | SIZE(FT) | SIZE(MM) |
5754 H114 |
.063×48×96 | .00525×4×8 | 1.6×1219×2438 |
.063×48×120 | .00525×4×10 | 1.6×1219×3048 | |
.125×48×96 | .01042×4×8 | 3.175×1219×2438 | |
.125×48×144 | .01042×4×12 | 3.175×1219×3658 | |
.250×48×120 | .02083×4×10 | 6.35×1219×3048 | |
.250×48×96 | .02083×4×8 |
6.35×1219×2438 |
5000 series 5-bar Aluminum Tread Plate Packaging & Delivery
Including:5005 5-bar aluminium tread plate,5052 5-bar aluminium checker plate,
5083 5-bar aluminium tread plate,5754 5-bar aluminium chequered plate,
5182 5-bar aluminium durbar plate,5086 5-bar aluminium tread plate,
5A02 5-bar aluminium tread plate
Package:export standard package,wooden pallet with fumigationDelivery time:about 30days after receiving the deposit
Payment:TT
Trading terms:FOB,CIF,CFR
We can supply the Form E, Form A,CO and so on
5000 series 5-bar Aluminum Tread Plate Applications
Including:5005 5-bar aluminium tread plate,5052 5-bar aluminium checker plate,
5083 5-bar aluminium tread plate,5754 5-bar aluminium chequered plate,
5182 5-bar aluminium durbar plate,5086 5-bar aluminium tread plate,
5A02 5-bar aluminium tread plate
1.The embossed aluminium sheet is commonly used in producing chemical equipment and railroad tank cars.
2.Aluminium diamond plate is also for non-slip floor in automobiles, airplanes, light rails, vehicle steps,
stair treads, elevators, garages, workshops and more.
3.Aluminium Diamond plate can also be used for wall panels, counter tops and tiling for other surfaces, and various
architectural uses. Since it is easy to machine as well as being robust and attractive, diamond plate tool
boxes are another popular application.
4.Aluminium diamond plate is suitable for the majority of applications. Its diamond texture gives excellent
anti-skid properties, and it is often used in industrial settings for stairways, catwalks, ramps and walkways
where wet conditions may otherwise pose a risk of sliding or falling. These non-slip properties also make
it a common solution for ambulance floors and for the footplates of firetrucks, as well as domestic truck
beds and trailer floors
5.Aluminum diamond plate has a wide range of applications in chemical equipment and sheet metal work,
as well as cooking utensils and pressure vessels, garage doors, awning slats, storage and gasoline tanks
and a variety of drawn and spun components. In sheet form, a relatively low thickness nevertheless provides
a high degree of rigidity, whilst remaining formable under the right circumstances.
Aluminum tread plate/aluminum checker plate/aluminum chequered plate
Including:5005 5-bar aluminium tread plate,5052 5-bar aluminium checker plate,
5083 5-bar aluminium tread plate,5754 5-bar aluminium chequered plate,
5182 5-bar aluminium durbar plate,5086 5-bar aluminium tread plate,
5A02 5-bar aluminium tread plate
The classification of the aluminum tread plate by bar:Five bar aluminum tread plate,Three bar aluminum tread plate,aluminum diamond plate,orange-peel aluminum tread plate.
The classification of the aluminum tread plate by surface :bright aluminum tread plate,mirror aluminum tread plate.
matte aluminum tread plate
The classification of the aluminum tread plate by feature :corridor aluminum tread plate,anti-skid aluminum tread plate,
rust-proof aluminum tread plate
