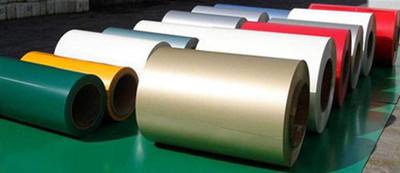

PE coated aluminum coil/PVDF coated aluminum coil
PE coated aluminum coil/PVDF coated aluminum coil
![PVDF coated aluminum coil](/uploads/allimg/170517/1-1F51G00JHQ.jpg)
About coated aluminum coil
Coated aluminum coil refers to the aluminum coil through coating and coloring treatment generally includes PE coated aluminum coil and PVDF coated aluminum coil. Coated aluminum coil is widely used to manufacture aluminum composite panel,aluminum ceiling,roofing,aluminum veneer,signboards.
PE COATED ALUMINUM COIL
- Alloy:1100 3003 5005 1050 1050 1070 3012 8011
- Temper:O H12 H14 H16 H18 H22 H24 H26
- Aluminum thickness:0.06MM-1.0MM
- Aluminum width:600MM-1570MM
- Color:color refer to our standard color catalog ,also can produce according to your requirement.
- Weight :2-3mt per coil
- ID:405mm/505mm
- Packaging:export standard packaging
- Shipment:within 20days after receipt of your prepaid.
- Payment:TT
- MOQ:5tons per size
PE coated aluminum coil technical data
TEST ITEM | STANDARD INDEX | REST RESULT |
Coating film thickness | Min 16um | 16um(average 17um) |
Gloss tolerance |
≤10(Gloss<70) ≤5( Gloss≥70) |
1.5 |
Pencil hardness | ≥HB | 3H |
Coating flexibility | ≤3T | 1T |
Impact Resistance | 50kg.cm No depainting no crack | 50kg.cm No depainting no crack |
Solvent Resistance | No change | No change |
Abrasion Resistance | ≥1000times no change | ≥1000times no change |
Boiling-water resistance | No change | No change |
Acid Resistance | No change | No change |
Alkali resistance | No change | No change |
Oil resistance | No change | No change |
PVDF COATED ALUMINUM COIL
- Alloy:1100 3003 5005 1050 1050 1070 3012 8011 3A21 3105 3102
- Temper:O H12 H14 H16 H18 H22 H24 H26
- Aluminum thickness:0.21MM-1.0MM
- Aluminum width:600MM-1570MM
- Color:color refer to our standard color catalog ,also can produce according to your requirement.
- Weight :2-3mt per coil
- ID:405mm/505mm
- Packaging:export standard packaging
- Shipment:within 20days after receipt of your prepaid.
- Payment:TT
- MOQ:5tons per size
PVDF coated aluminum coil technical data
TEST ITEM | STANDARD INDEX | REST RESULT |
Coating film thickness | ISO 2360:2003 | 26um |
Gloss tolerance | ASTM D523-89 | 38% |
Pencil hardness | ASTM D3363-00 | 2H |
Coating flexibility | ASTM D4145-83(2002) | 2T |
Impact Resistance | ASTM D2794-93 | 100kg.cm No depainting no crack |
Solvent Resistance | ASTM D2248-73 | No change |
Abrasion Resistance | ≥1000times no change | ≥1000times no change |
Boiling-water resistance | AAMA2605-02 | No change |
Acid Resistance | ASTM 1308-87 | No change |
Alkali resistance | ASTM 1308-87 | No change |
Adhesive force | ASTM D3359-97 | 4B |
Abrasion resistance | ASTM D968-2001 | 55L/MIL |
Humidity resistance | ASTM D714-97 | 3000hrs No blister |
Color resistance | ASTMD2244-93 | △E=0.35 |
Chalk resistance | ASTM D4214-98 | No change |
Gloss retention | ASTM D2244-93 | 84.5% |
Surface buming behavior | ASTM E84-04 | CLASS A |
Salf-spray resistance | ASTM B117-03 | 3000hrs No blister |
Coated aluminum coil package
- Thickness>0.18mm paper sleeve thickness:505mm
- Thickness<0.18mm Aluminum sleeve thickness:150mm
- Each coil to be securely tied with two bands
- The contact points of these bands on the coil edge to be protect with edge protectors
- Coil then to be properly wrapped with plastic film ,woven belt, resistant paper
- Wooden or iron pallet can be used or as your requirements
Coated aluminum coil application
- Exterior applications such as: Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations
- Interior applications such as: Wall cladding, ceilings, bathrooms, kitchens and balconies
- Advertisement and market applications such as: Display platforms, signboards, fascias and shop fronts
- Transport and industry application
