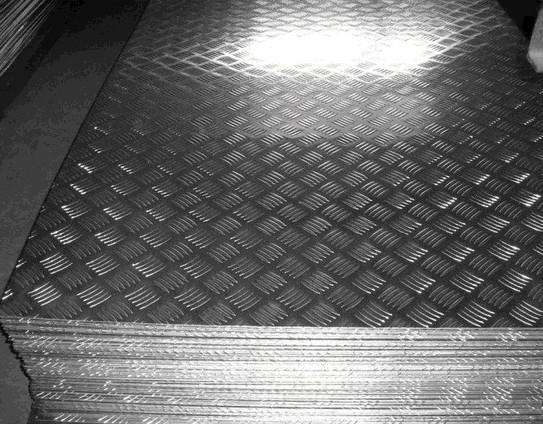

1100 Aluminium chequered plate

aluminum chequered plate

1100 Aluminium chequered plate description
  • Grade:1100
  • Thickness: 1mm-6mm
  • Width: 2200mm max.
  • Length: 12000mm max.
  • Temper:H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, O etc.
  • Pattern:
  •    1) big 5 bar 1100 aluminium tread plate
  •    2) small 5 bar 1100 aluminium tread plate
  •    3) diamond 1100 aluminium tread plate
  •    4) 3 bar  1100 aluminium tread plate
  •    5) pointer 1100 aluminium tread plate
  •    6)  2 bar  1100 aluminium tread plate
  • Tread height: 0.8mm-1.5mm
  • Tread length: 35mm-50mm
  • Surface: Mirror,matte,bright

1100 Aluminium chequered plate applications
  • Ship deck
  • Autos
  • Workshop floors
  • Building floors and steps
  • Antiskid floor of bus
  • Elevator
  • Treadboard
  • Stair tread
  • Vehicle step
  • Industrial settings for stairways, catwalks, ramps and walkways
  • common solution for ambulance floors and for the footplates of firetrucks, as well as domestic truck beds and trailer floors

1100 Aluminium chequered plate features
  • Light in weight
  • Convenient assembling
  • Disassembling

About Aluminum tread plate/aluminum checker plate/aluminum chequered plate

The classification of the aluminum tread plate by bar:Five bar aluminum tread plate,Three bar
aluminum tread plate,aluminum diamond plate,orange-peel aluminum tread plate.
The classification of the aluminum tread plate by surface :bright aluminum tread plate,mirror
aluminum tread plate.matte aluminum tread plate
The classification of the aluminum tread plate by feature :corridor aluminum tread plate,anti-skid
aluminum tread plate,rust-proof aluminum tread plate

Detailed specifications of aluminum tread plate
1)Temper
Tread  Temper Normal Temper  Tread  Temper Normal Temper
H114 O H164 H15
H264 H25
H364 H35
H124 H11 H174 H16
H224 H21 H274 H26
H324 H31 H374 H36
H134 H12 H184 H17
H234 H22 H284 H27
H334 H32 H384 H37
H144 H13 H194 H18
H244 H23 H294 H28
H344 H33 H394 H38
H154 H14 H195 H19
H254 H24 H295 H29
H354 H34 H395 H39

2)Chemical composition
Chemical Composition(mass fraction)%
Alloy Si Fe Cu Mn Mg Cr Zn Other Ti Ai
1060 0.25 0.35 0.05 0.03 0.03   0.05 V0.05 0.03 99.6
1100 Si+Fe0.95 0.05-0.2 0.05     0.1     99
3003 0.6 0.7 0.05-0.2 1-1.5     0.1     Remain
3105 0.6 0.7 0.3 0.3-0.5 0.2-0.8 0.2 0.4   0.1 Remain
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1     Remain
5083 0.4 0.4 1   4-5 0.05-0.25 0.25   0.15 Remain
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 0.2 Mn+Cr   0.1-0.6 0.15 Remain
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25   0.15 Rem
