5083 aluminum checkered plate
Specifications of 5083 aluminum tread plate :
1 Grade:5083
2 Thickness: 1mm-6mm
3 Width: 2200mm max.
4 Length: 12000mm max.
5 Temper:H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, O etc.
6 Pattern:
1) big 5 bar 5083 aluminum tread plate :
2) small 5 bar 5083 aluminum tread plate

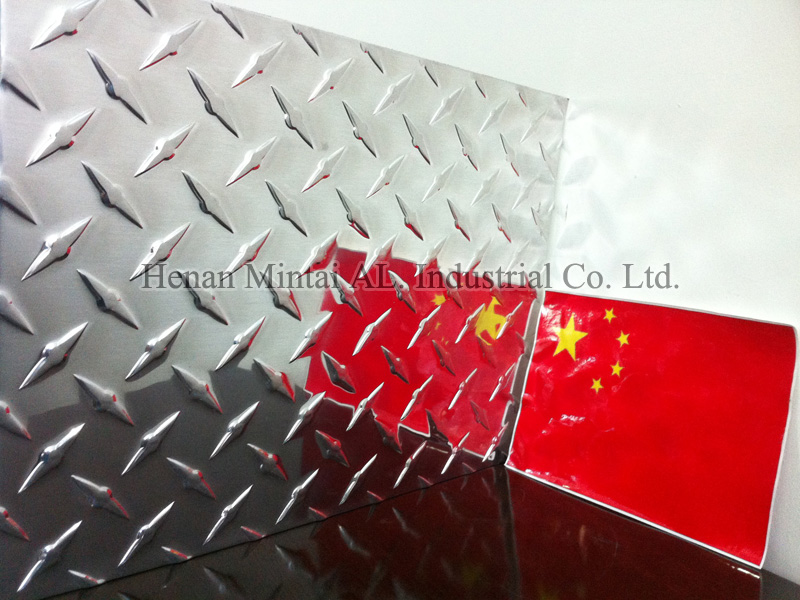

3) diamond 5083 aluminum tread plate
4) 3 bar 5083 aluminum tread plate
5) pointer 5083 aluminum tread plate
6)2 bar 5083 aluminum tread plate
7 Tread height: 1.0mm-1.5mm
8 Tread length: 35mm-50mm
Applications of aluminum tread plate 5083 :
1) Ship deck
2) Autos
3) Workshop floors
4) Building floors and steps
5) Antiskid floor of bus
6) Elevator
7) Treadboard
8) Stair tread
9) Vehicle step
etc.
Features of aluminum tread plate 5083 :
1)Light in weight
2)Convenient assembling
3)Disassembling
Detailed specifications of aluminum tread plate:
1)Temper
| Tread Temper | Normal Temper | Tread Temper | Normal Temper |
| H114 | O | H164 | H15 |
| H264 | H25 | ||
| H364 | H35 | ||
| H124 | H11 | H174 | H16 |
| H224 | H21 | H274 | H26 |
| H324 | H31 | H374 | H36 |
| H134 | H12 | H184 | H17 |
| H234 | H22 | H284 | H27 |
| H334 | H32 | H384 | H37 |
| H144 | H13 | H194 | H18 |
| H244 | H23 | H294 | H28 |
| H344 | H33 | H394 | H38 |
| H154 | H14 | H195 | H19 |
| H254 | H24 | H295 | H29 |
| H354 | H34 | H395 | H39 |
2)Chemical composition
| Chemical Composition(mass fraction)% | ||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Other | Ti | Ai |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | V0.05 | 0.03 | 99.6 | |
| 1100 | Si+Fe0.95 | 0.05-0.2 | 0.05 | 0.1 | 99 | |||||
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1-1.5 | 0.1 | Remain | ||||
| 3105 | 0.6 | 0.7 | 0.3 | 0.3-0.5 | 0.2-0.8 | 0.2 | 0.4 | 0.1 | Remain | |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | Remain | ||
| 5083 | 0.4 | 0.4 | 1 | 4-5 | 0.05-0.25 | 0.25 | 0.15 | Remain | ||
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | 0.2 | Mn+Cr 0.1-0.6 | 0.15 | Remain |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Rem | |
